Rahmen | Macina Scout Alloy6061, PT625Wh Bosch Gen. 4 |
Gabel | Suntour XCR 34 air LOR 80mm |

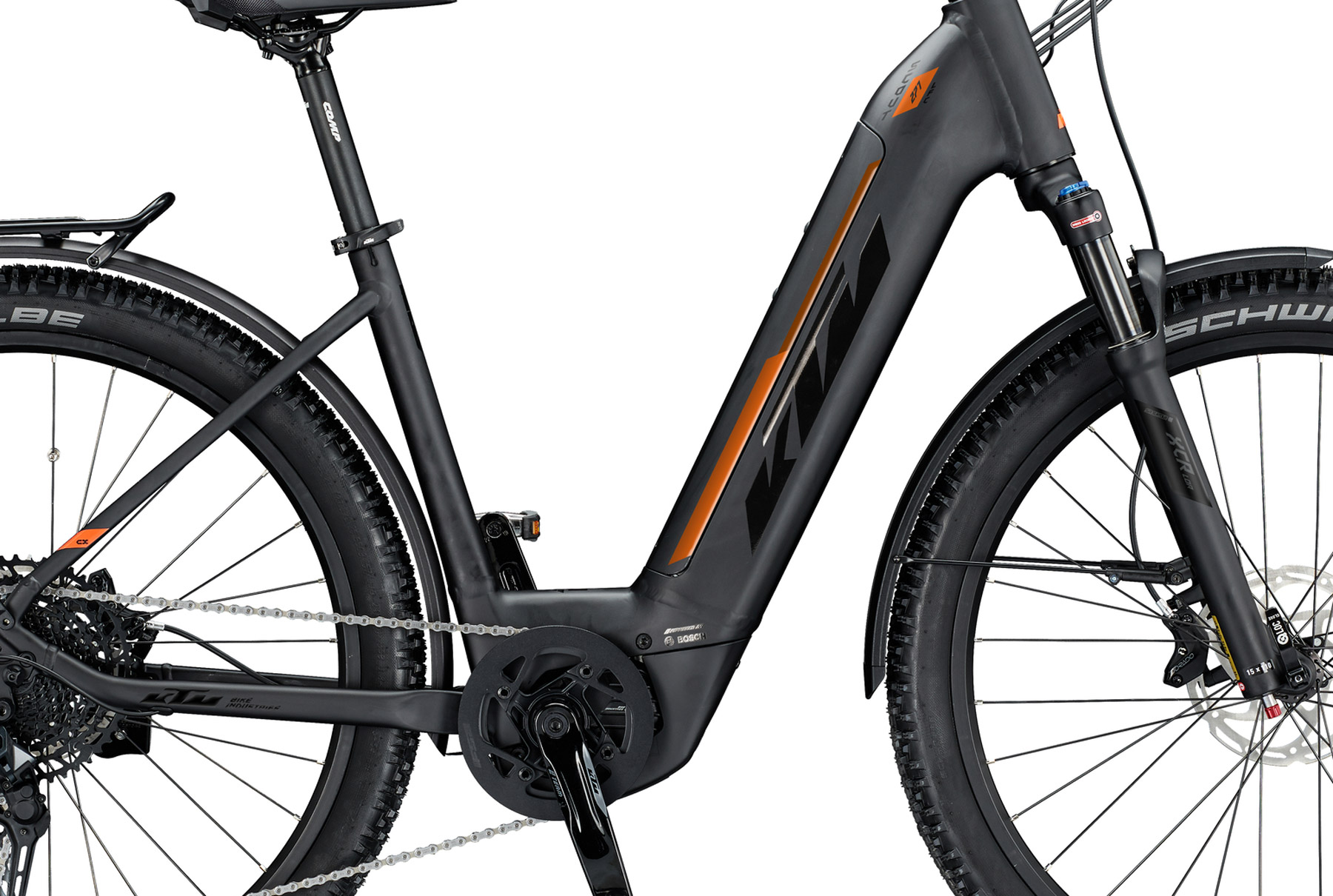

Motor | Bosch PERFORMANCE CX Gen. 4 – 25km/h / 75Nm |
Display | Bosch INTUVIA LCD Display mit Remote |
Akku | Bosch PowerTUBE 625Wh hor. |
Ladegerät | Bosch STANDARD Charger 4A |

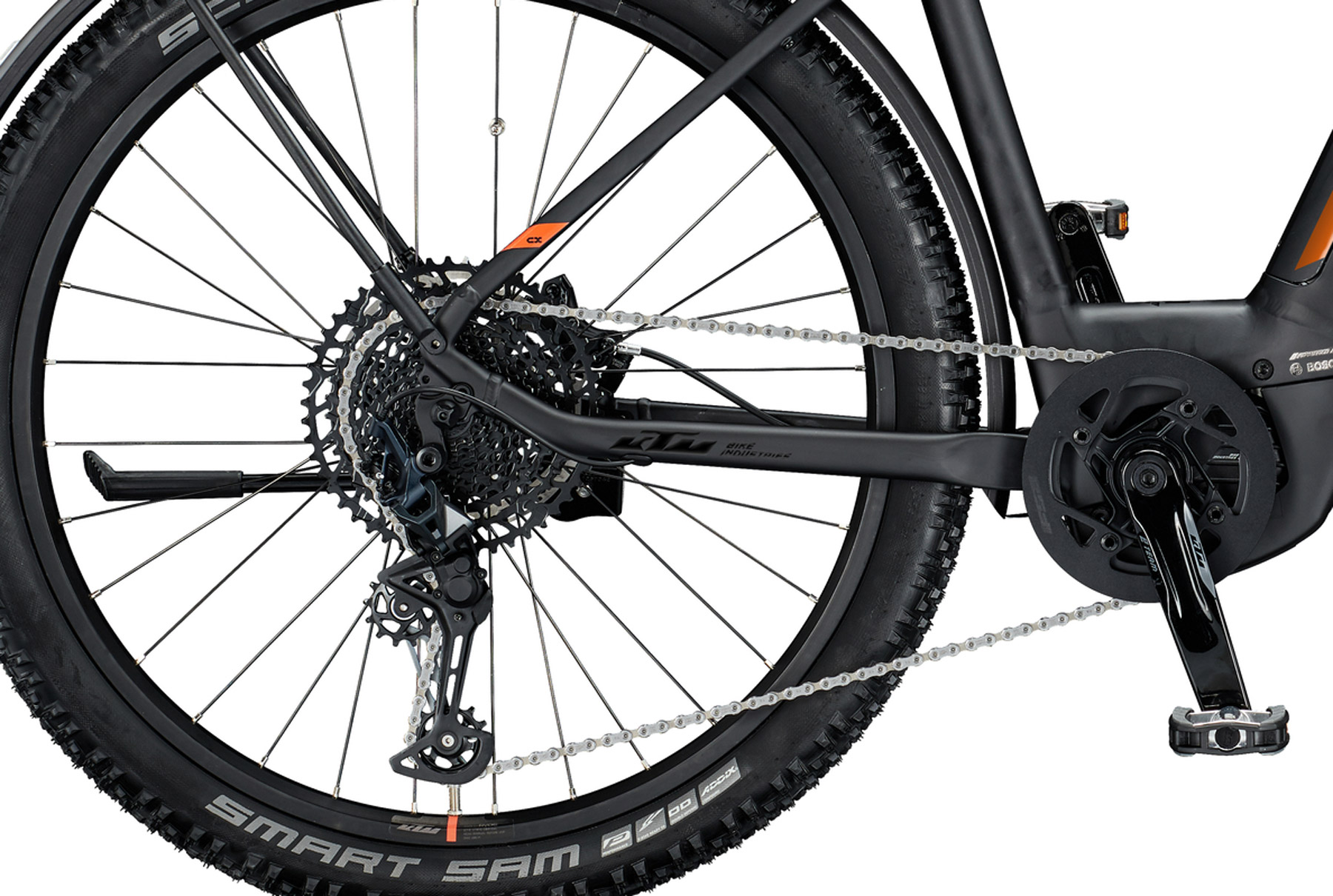

Schaltung | Shimano SLX M7100-12 SGS shadow + |
Schalthebel | Shimano SLX M7100-12 |
Kurbelgarnitur | KTM Team ISIS 170mm Q16 |
Kettenblatt | FSA Megatooth steel 38T mit Kettenschutz |
Zahnkranz | Shimano SLX M7100-12 / 10-51 |
Kette | Shimano SLX M7100-12 |
Bremsen | Tektro HD-M750/E730 4-Piston |
Rotor | Tektro TR180-45 2.3mm CL 180 / 180 |
Felgen | Ryde Andra40 |
Vorderradnabe | Shimano Deore M6010B CL 32H 110-15TA |
Hinterradnabe | Shimano MT500 CL 32H |
Reifen | Schwalbe Smart Sam Perf. 57-584 |
Griffe | Ergon GP1 SD ohne Barend |

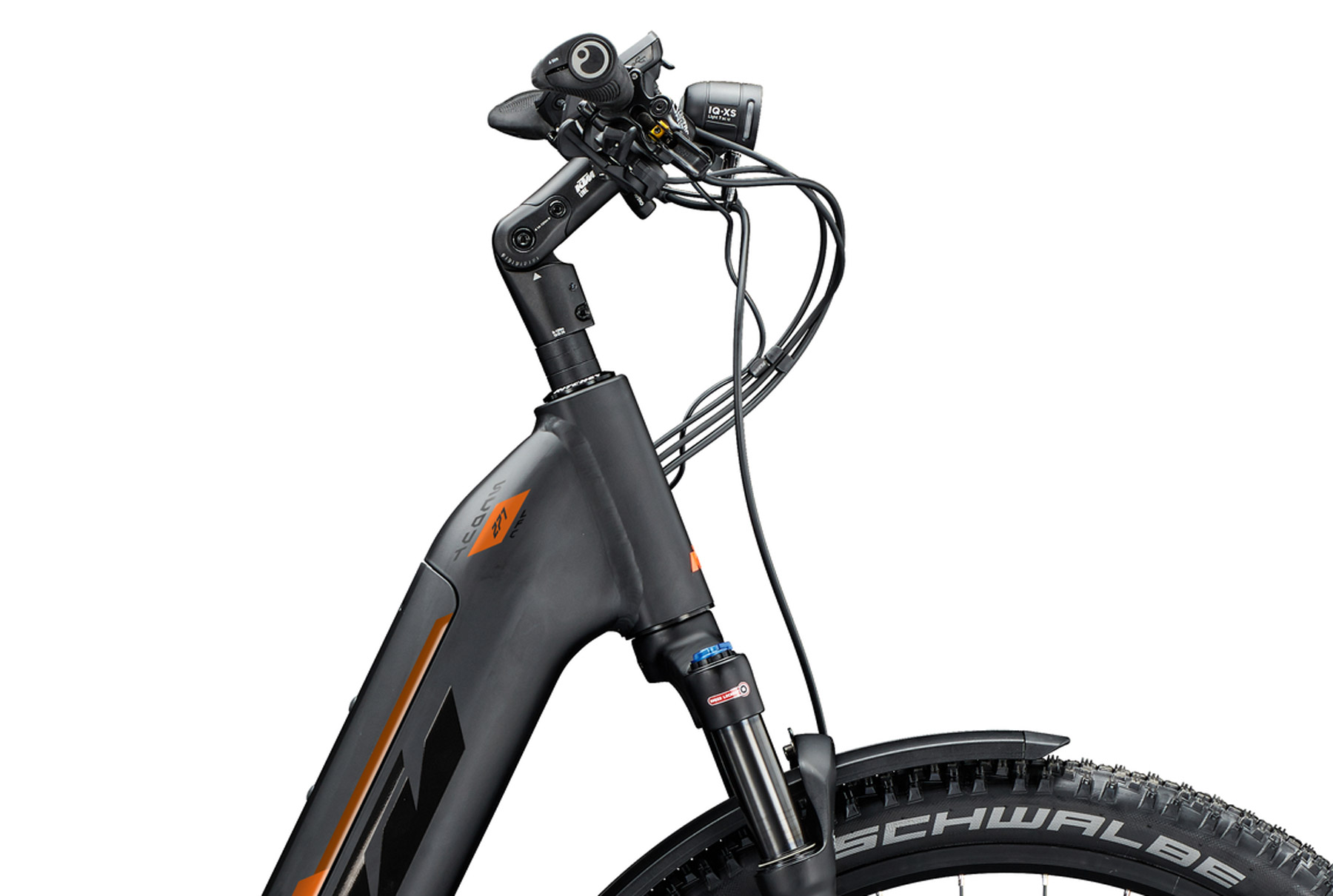

Lenker | KTM Comp rizer 680mm |
Vorbau | KTM Line UP+ adjust. 0-90° |
Steuersatz | Ritchey Logic Zero Comp 1.1/8>1.5“ |
Sattel | Selle Royal Lookin |
Sattelstütze | KTM Comp 30.9/350 |
Pedale | Trekking-Pedal VP-616 (anti-slip) |
Gepäckträger | Wingee alloy fender-plattform (snap-it) |
Frontlicht | B+M Lumotec IQ-XS LED 70 Lux |
Rücklicht | B&M Xecltec Racktime Alu 72mm |
Ständer | KTM Hinterbauständer |
Kategorie | E2 |
Systemgewicht | 144 kg (zulässiges Gesamtgewicht) |
Gewicht | 25,9 kg (ohne Pedale) |
